Grow Box Odor Filtration: The Ultimate Guide to Setup, Calculations, and Equipment

For any indoor gardener, odor control is a top priority. Effective ventilation does more than just ensure privacy; it is crucial for maintaining a healthy microclimate by regulating temperature and $CO_2$ levels. In this guide, we will break down the technical aspects of filtration based on the laws of aerodynamics and years of urban farming experience.

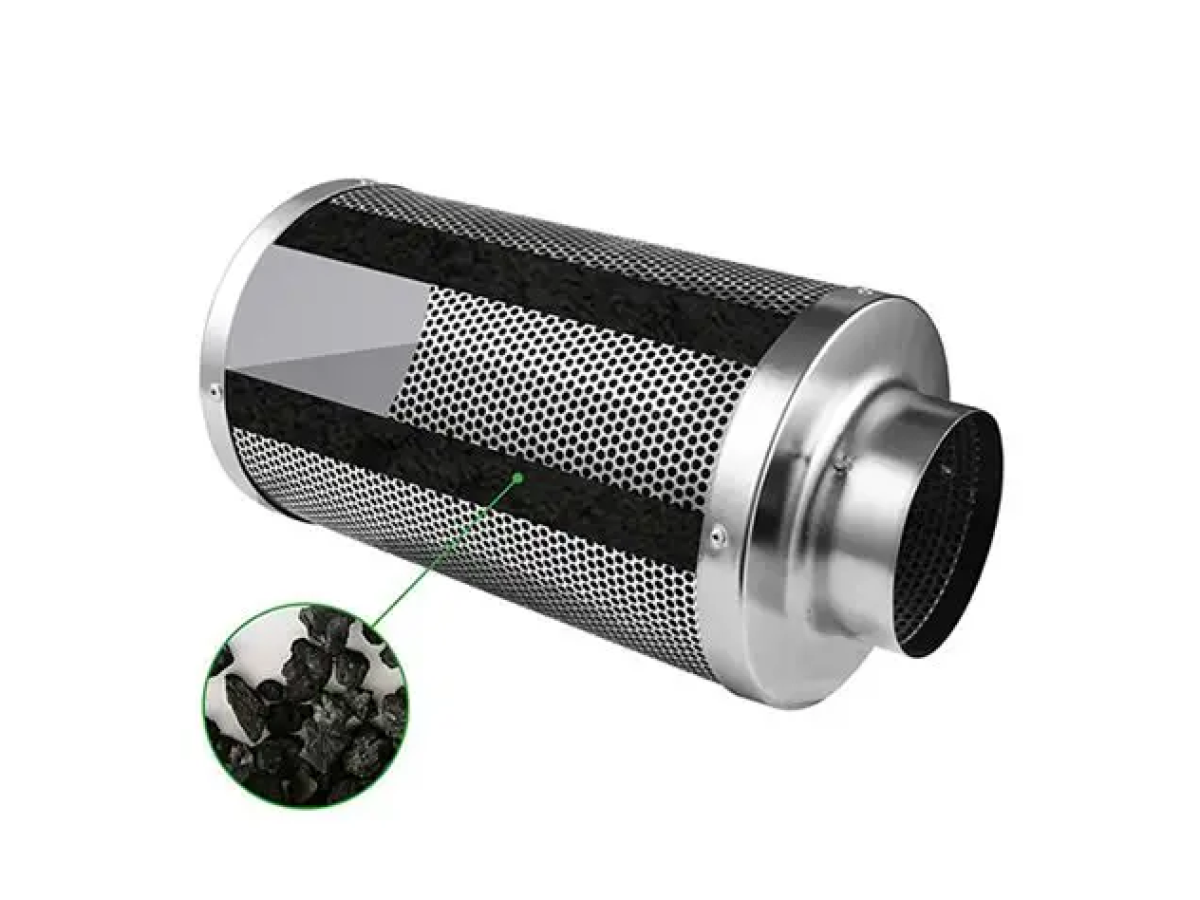

1. The Gold Standard: Activated Carbon Filters

The most reliable solution for odor removal remains the activated carbon filter. Unlike sprays or gels, it doesn't mask smells—it physically removes organic odor molecules through a process called adsorption.

Expert Tip: To achieve maximum efficiency, we recommend filters using RC-412 (Australian) or AR-V virgin activated carbon. These grades have the ideal micropore structure for trapping complex organic compounds.

What to look for:

• Carbon Bed Thickness: Ideally between 3–5 cm.

• Pre-filter: The white outer sleeve that traps dust. Without it, the carbon will clog within weeks.

• Refillability: Choosing a refillable model can significantly reduce your long-term maintenance costs.

2. Engineering Calculations: Choosing the Right Power

Filtration efficiency depends on the "contact time"—how long the air stays in contact with the carbon. If the air moves too fast, the odor molecules won't be trapped.

To calculate the minimum required fan capacity ($Q$), use the following formula:

• $V_{box}$: Volume of the box (Length \times Width \times Height) in m^3.

• 60: Air exchange rate (once per minute).

• 1.25: Pressure drop coefficient (accounting for filter resistance).

Calculation Table for Popular Sizes:

Why are the recommendations higher than the calculation? In a real-world environment, your fan must also combat the heat generated by lighting. A slightly overpowered fan running at lower speeds is quieter and more efficient.

3. Optimization: Creating Negative Pressure

The secret to a 100% odor-free room is negative pressure. This occurs when the air pressure inside the tent is lower than the pressure outside, causing the tent walls to suck inward slightly. This ensures that air only exits through the filter, not through zippers or intake ports.

Optimal Installation Sequence:

1. Carbon Filter: Mounted at the highest point inside the box (where heat and odors accumulate).

2. Duct Fan: Connected directly to the filter or via a short duct.

3. Ducting: Lead the air outside with as few bends as possible (every 90° turn reduces airflow by 15-20%).

4. Maintenance and Troubleshooting

• Humidity Warning: If humidity exceeds 70%, the carbon absorbs water molecules instead of odors. This is the #1 reason why filters "fail" prematurely.

• Pre-filter Cleaning: Wash the white outer sleeve every 2 months. Dust is the silent killer of carbon efficiency.

• Airtight Seals: Check your ducting joints with a flashlight in the dark—if light leaks out, odor-filled air is leaking too. Use steel clamps and aluminum tape for a professional seal.
